ABOUT EXTRUBOT

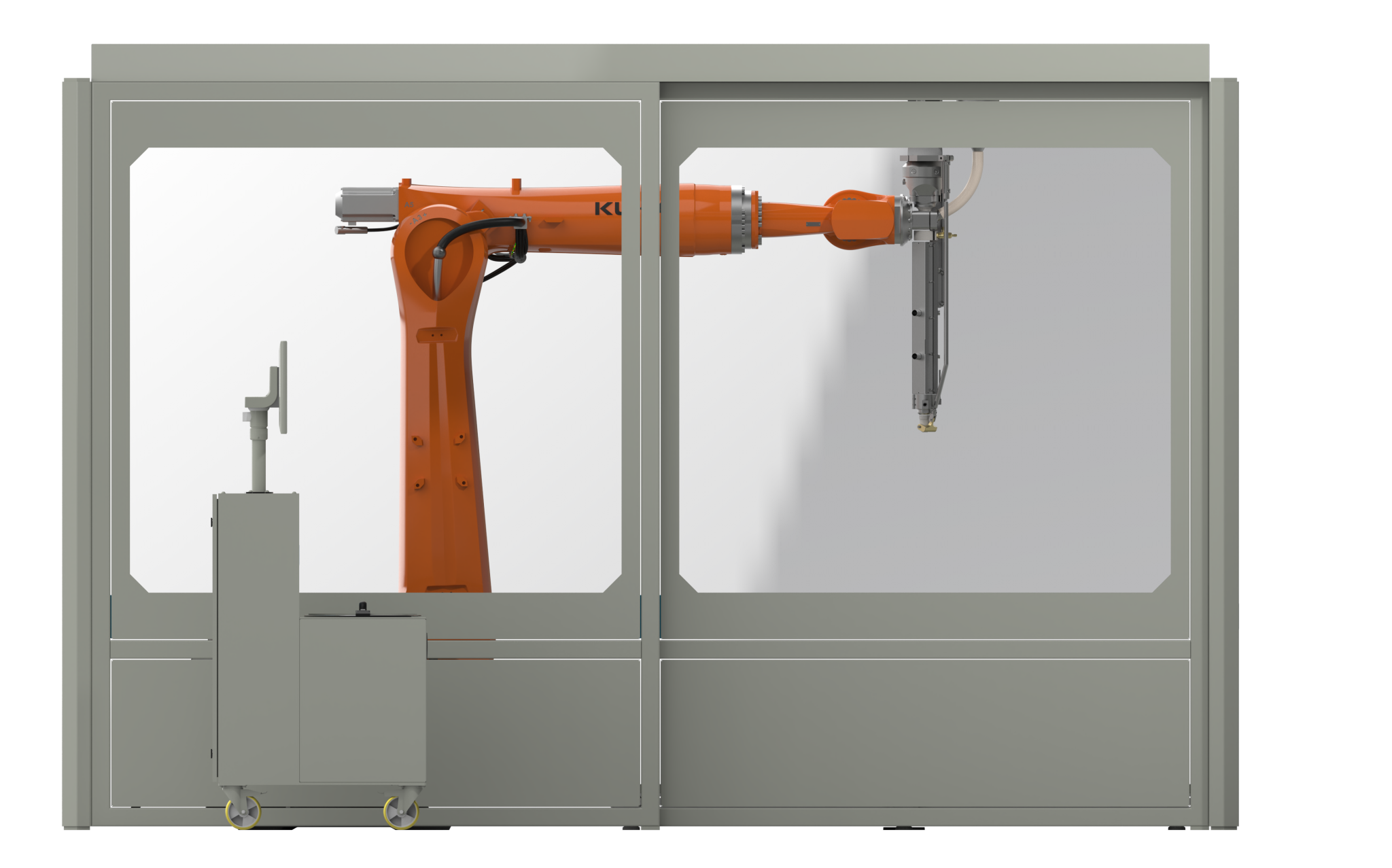

Periplast is an extruder manufacturer for more than 30 years. We are experts in manufacturing small pellets extruders like Ø20 / Ø25 / Ø30 (co-extruders). We re-engineered these extruders and gave them a ROBOT life, creating our first 3d pellet extruder our new EXTRUBOT®

EXTRUBOT® DESIGN PRINCIPLES:

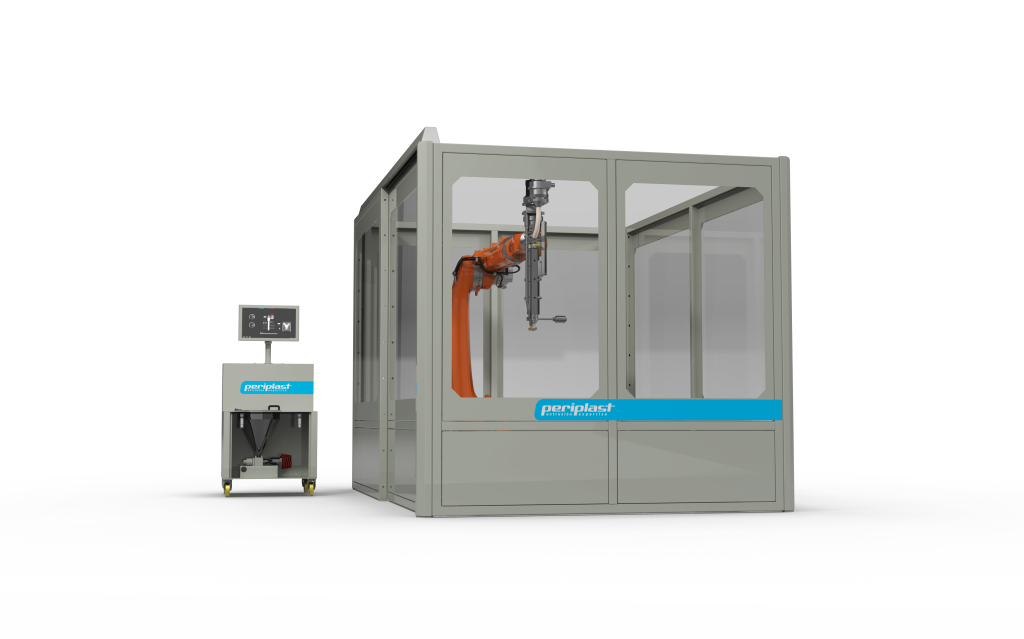

ALL IN ONE BOX SOLUTION (EXTRUDER/ROBOT/SOFTWARE)
user-friendly windows PC-based control software for the extruder, that can be updated with a single click.
user-friendly windows PC-based control software for the extruder, that can be updated with a single click.
Plasticizing unit design prepared for high-sensitive materials with High Torque and a Max. Temperature operation up to 400º, we can handle any polymer in the market
Continuous and automatic feeding of the extruder
Easy replace NOZZLE with different options and shapes (1/12mm)
Reduces costs drastically - PELLETIZED materials for 3D printing is cheaper than using filaments.
Easy and Safe

FEATURES

THERMALLY INSULATED PROTECTIONS
Heating zones to control extruder and tooling w/ thermocouples
Precise Servo motor
RECIPES for different materials (Speed, Zone temperature, Heating Bed temperature, Cooling)
HIGH GRIP - PRINTING SURFACE
Material transport distance:10 meter
Communication with the Robot using Master/SLAVE Ethercat protocol - or digital/analog signals

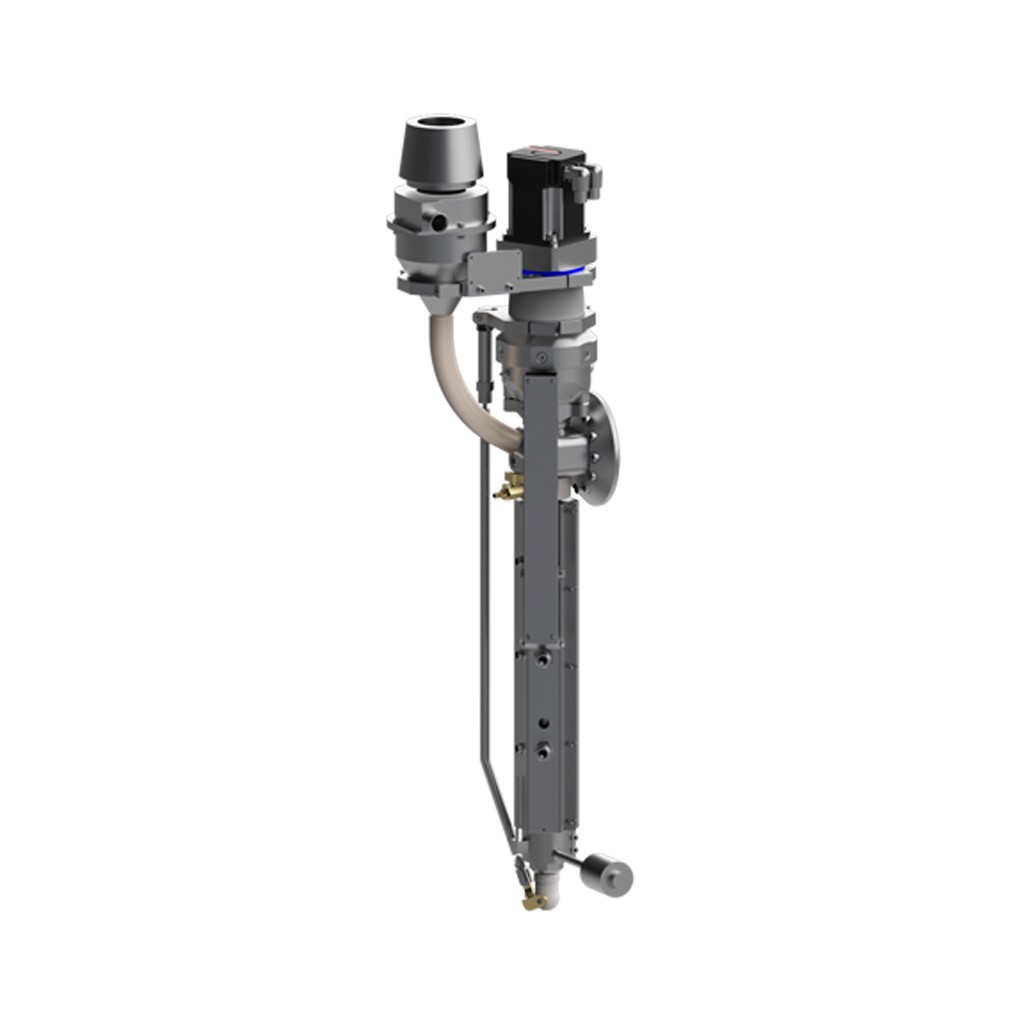

EXTRUDER MODEL

	Ø25x25D
SCREW	Ø25
BARREL ZONES	3
COOLING ZONES	3
Screw (rpm)	150
output (Kg/h)	12*
WEIGHT	40

* PP+ 30% Glass Fiber

EXTRUDER SOFTWARE

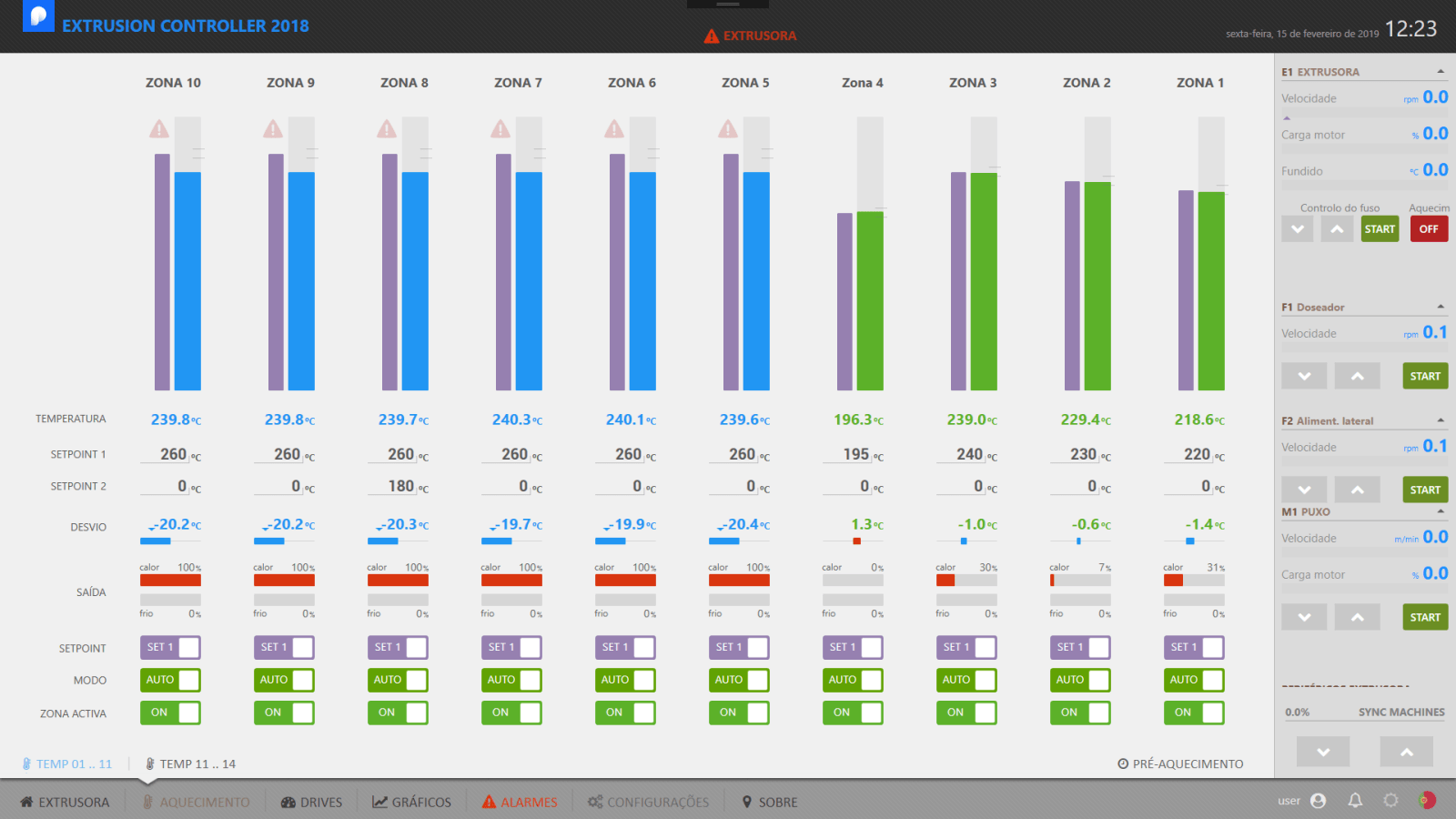

PC-Base multi touch Screen (Extrusion Controller), designed for industrial extruders, giving you full control of the EXTRUBOT®

Seguinte

Temperature Settings (Two Setpoints)

Different recipes for each product.

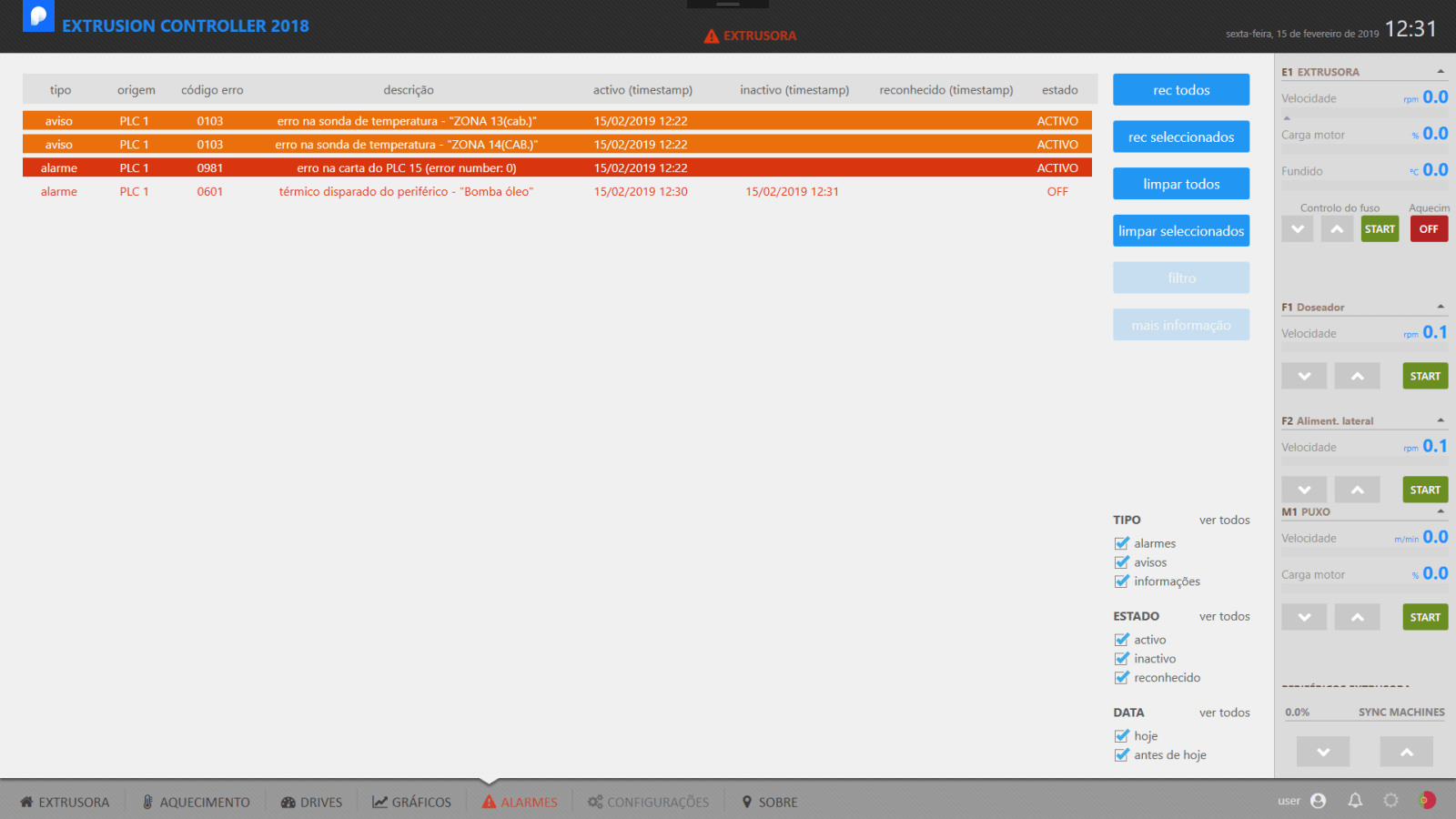

Alarm log

Logging of the temperature, Drive speeds, Recipes and Operator Data

FEEDING

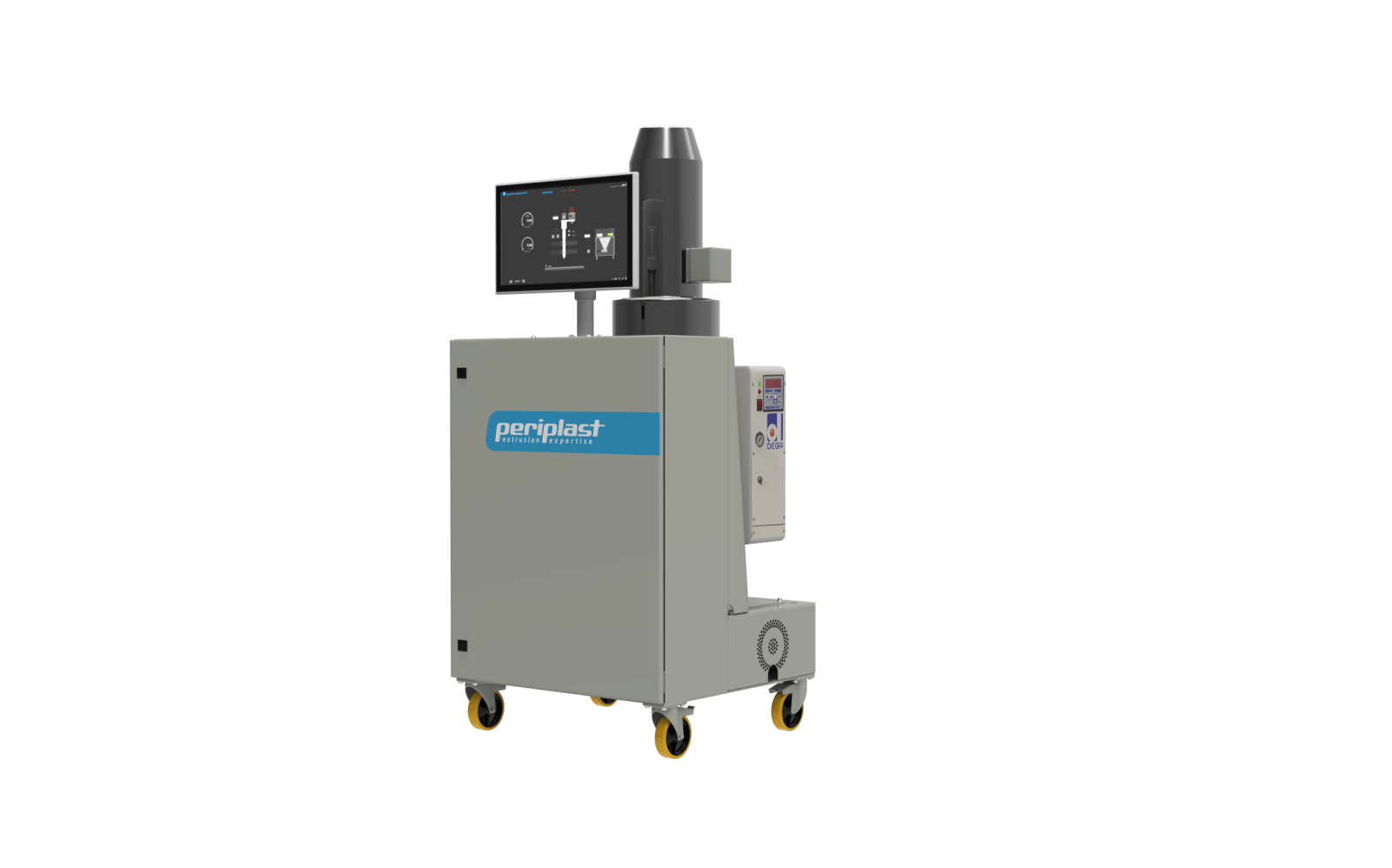

ALL IN ONE - AUTOMATIC FEEDING

Our Integrated electric panel, computer, material storaging and conveying is one solution for a complete and easy extruder operation,with up to 8 hours of printing without feeding.

Continuous work only possible with the automatic feeding

Material Storage >25KG

Warning for low raw material

Steady flow of plastic pellets to the extruder with a 10 meters hose

Optional: Small Dryer for raw material

NEWS

You can download the PDF with all the info about EXTRUBOT®
